Overview

Microsoft OneDrive is a file syncing utility that is included on the Microsoft Windows operating system. Its purpose is to synchronise the user’s personal files so that they are always available on Microsoft’s servers. The intention is to provide the user with security (their personal files are constantly being backed up) and the opportunity for Microsoft to make a profit (Microsoft charges for storage space).

Technically what OneDrive is attempting to do here is called “bi-directional syncing” and it is extremely difficult to pull off. To understand why, imagine two computers that are kept synchronized with each other; now imagine that two users edit the same file at the same time. Which file is now the correct one? Is there a correct one? How do you merge their changes? Ideally these questions should be answered automatically, seamlessly, and correctly by the underlying system.

Microsoft’s advantage here is that they have written and control the entire operating system. If anyone is in a position to build a high quality syncing system, it’s them.

Testing Scenario

To test OneDrive, I have created two QEMU virtual machines. Each machine runs Windows 11 Home (25H2), has 16GB of RAM, and 8 CPUs. Both machines shared a logged-in user who has access to the free OneDrive account (5GB free space). The machines are connected to the Internet at gigabit speed.

Most of the tests are being done with my Dummy Directory software, which can quickly generate large amounts of test data. I have told OneDrive to “Always keep on this device” the test data.

Microsoft published this document which lists OneDrive’s limitations. Among these are:

• 250GB maximum file size
• They recommend syncing no more than 300,000 items are one time
• Recommend Windows 11 with 16GB – 32GB of RAM and Intel i5 / AMD Ryzen 5 or later (I’m running Ryzen 7)

Simple Conflicts

The simplest test, to start out, is to create a basic text file that is shared on both systems. Then I attempt to change the file in different ways on both systems at the same time.

For a small file, syncing was very fast; it only took a few seconds after I saved the file on the first system for the changes to show up on the second. Unfortunately when both files were edited at the same time the results were inconsistent and sometimes destructive: in one situation the changes were lost, in others OneDrive would create a duplicate file with the alternative changes.

We will return to this test later, but in a more complicated scenario.

Photographer Scenario

For this scenario, let’s imagine someone who uses their computer to store photographs. I’ll use Dummy Directory to create 1GB worth of test data across 100 directories with each file sized at between 2 and 10 MB. This is pretty tame; my personal photo store has over 47,000 photos and is nearly 350GB in size.

dadd --count=100 --seed=110b3501c02c7e5c
add --size=1g --seed=b84e8de13e40523c --filetype=binary --filesize=2m-10m
# 160 items processed. 1,073,741,824 bytes written in 15.285976 seconds (70,243,589.55 bytes per second)
# Manifest contains 101 directories and 160 files.
# 1,073,741,824 bytes total.

It took less than 3 minutes to generate this data and for the second machine to synchronize.

Now let’s run through the basic paces and try a variety of file and directory operations:

• Rename 25% of the files – a few seconds
• Move 25% of the files – a few seconds
• Rename 25% of the directories – a few seconds
• Move 25% of the directories – a few seconds

This is actually pretty impressive, it shows that Onedrive tracks filesystem operations and can re-apply them during sync. Other synchronization software would interpret a directory renaming as a delete followed by an add and end up re-syncing the entire directory.

Finally, let’s perform a bulk file modification. A photographer may occasionally need to change EXIF data across all of their photos; we can simulate that here by appending a small amount of data to each file:

modify --modifytype=append --filesize=100-200 --count=100% --seed=42c337f59cb11461
# 160 items processed. 24,267 bytes worth of changes in 6.741356 seconds (3,599.72 bytes per second)
# The total size of all affected files is 1,073,766,228 bytes
# Manifest contains 101 directories and 160 files.
# 1,073,766,228 bytes total.

This change was OK, it took about a minute and a half to sync. Judging by the bandwidth use, I’d judge that it basically re-transmitted all of the files rather than just the parts that were changed. Other syncing software operates more efficiently with these type of operations.

Videographer Scenario

For the next round of testing, I’ll focus on large files, similar to the video files that a videographer might use. Since we’re testing using a free account, and thus limited to 5GB total, we’ll just create a few 500MB files (5 total for 2.5GB of data):

add --filetype=binary --filesize=500m --count=5 --seed=9fa675880d920229
# 5 items processed. 2,621,440,000 bytes written in 39.894490 seconds (65,709,324.77 bytes per second)
# Manifest contains 1 directories and 5 files.
# 2,621,440,000 bytes total.

Once again OneDrive was efficient, transferring these new files to the other machine in less than 2 minutes.

Now lets see what happens if we perform a bulk modification on them, changing a little data inside each one:

modify --count=5 --seed=d8c4331004438f8c --filesize=5%-100%
# 5 items processed. 830,006,026 bytes worth of changes in 21.826915 seconds (38,026,721.00 bytes per second)
# The total size of all affected files is 2,220,676,112 bytes
# Manifest contains 1 directories and 5 files.
# 2,220,676,112 bytes total.

Notice that 830MB of changes were made but Onedrive once again opts to sends the entire file. It appears that large file synchronization does work, albeit inefficiently. The update took less than 2 minutes though I credit this more due to the gigabit speed of my Internet connection.

Large File Count

OneDrive has proven adept at handling large files but how does it handle a large number of files? Ideally I’d do a large number of large files but given that I’m working inside of OneDrive’s 5GB free storage limit, I’ll have to make due with a large number of small files.

I’ll have Dummy Directory create 100,000 files (well below the OneDrive 300,000 recommended limit) with file sizes ranging between 1KB-10KB. I’ll also create 1,000 directories to keep them in:

dadd --count=1000 --seed=712f76c77a3daee5
add --count=100000 --seed=63812e5d524c5ec5 --filesize=1k-10k
# 100,000 items processed. 563,957,828 bytes written in 318.569598 seconds (1,770,281.38 bytes per second)
# Manifest contains 1,001 directories and 100,000 files.
# 563,957,828 bytes total.

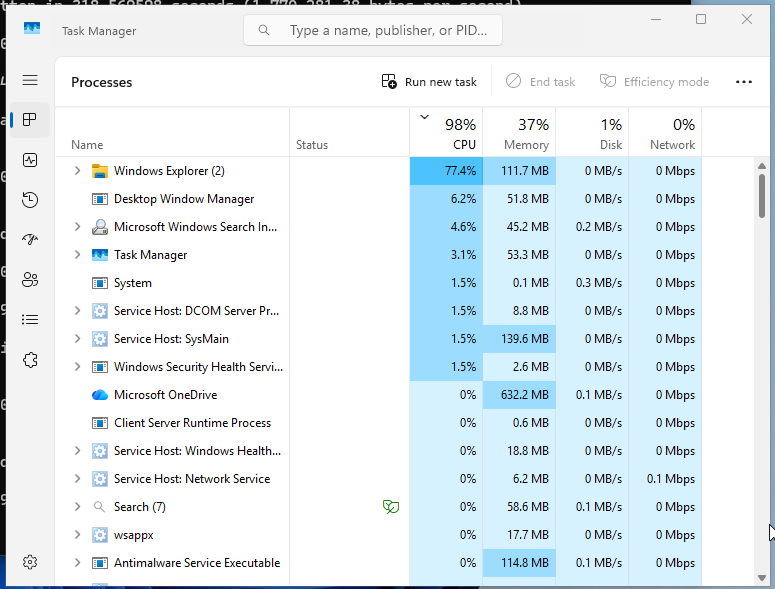

Though I’m actually dealing with less data than the previous tests, at this point the Windows environment slows to a crawl. All of the machine’s processing gets diverted to File Explorer and OneDrive processes.

Whereas the previous tests could fully sync the data in less than 2 minutes, this test takes over 7 hours to complete.

As before, I’ll run through the basic paces and try a variety of file and directory operations:

• Rename 25% of the files – 2 hours

Ok, nevermind, forget the rest of the operations. Not only did that take 2 hours to run but for the time being the machine is nigh unusable. Windows Explorer is hogging most of the available resources and is extremely unresponsive – taking several minutes to open a new window.

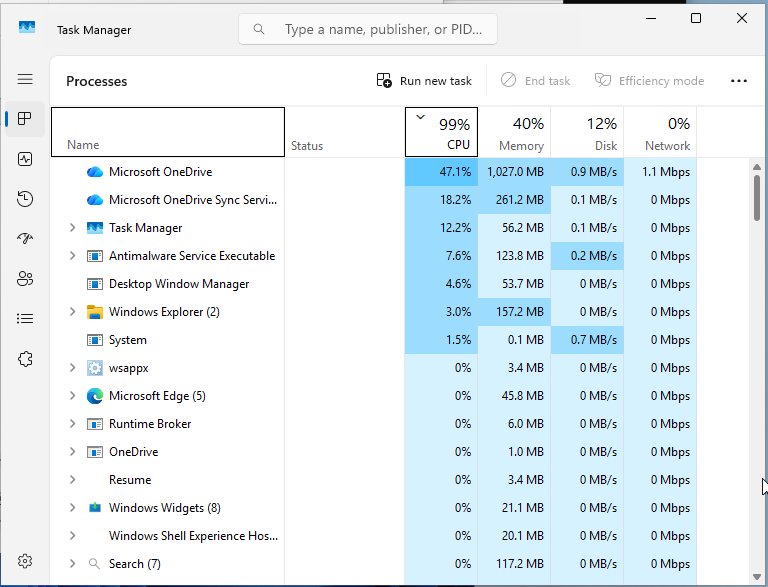

OneDrive does show ongoing processing. It looks like after syncing with OneDrive the machine is syncing back the changes it just made. On one hand that’s strange but on the other hand it’s a massive waste of resources that is keeping my machine from being usable.

OneDrive has made it perfectly clear that I will be punished for any future large scale operations. I’m going to give the machine time to finish it’s processing and then pivot to a different approach.

(Renaming the files took over 5 hours to complete)

Small Changes Among a Big File Count

A reasonable question at this juncture then is: does the presence of a large number of files impact the ability of OneDrive to process smaller changes? To find out let’s rerun the photographer baseline from above by creating 1GB of data across a smaller number of files.

dadd --count=100 --seed=42e5606ed54d67d9
add --size=1g --seed=a65f50ebee2b67cb --filetype=binary --filesize=2m-10m
# 164 items processed. 1,073,741,824 bytes written in 15.367765 seconds (69,869,746.51 bytes per second)
# Manifest contains 101 directories and 164 files.
# 1,073,741,824 bytes total.

It took less than 2 minutes to synchronize this data, consistent with the previous test. It would appear that the simple presence of files doesn’t have an impact on OneDrive’s performance.

One consequence I detected when performing changes on a large number of files is that it jams up OneDrive’s synchronization. Since it appears that file changes are synced in the order that they’re made, it means that a recent file change can’t be synced until all of the previous changes are synced first. Interestingly it also gives priority to changes made on machines that are not undergoing a massive change.

Finding OneDrives’s Breaking Point

These tests so far have established that OneDrive handles 100 easily while 100,000 files sends it into a nervous breakdown. This prompts poking at it a bit more, trying different numbers of files, and getting an idea of at what point it really starts to slow down.

For this next test, I start with an empty directory and add a given number of files (each one sized between 1k and 10k), then time OneDrive to see how long processing takes:

Number of Files	Total Size	Time for Initial Sync
100	.6 MB	< 1 minute
1,000	6 MB	3 minutes
10,000	56 MB	37 minutes
25,000	142 MB	1 hour 44 minutes
50,000 (+ 100 directories)	282 MB	3 hours 55 minutes
100,000 (+ 100 directories)	566 MB	6 hours 14 minutes

These numbers reveal a linear relationship, one where OneDrive can apparently process around 200-300 files per minute. At no point, however did OneDrive break – in fact I will reluctantly admit that OneDrive’s tolerance for processing 100,000 files is greater than mine.

This set rate of processing raises another possibility however: what would happen if a process ran continuously at a rate faster than OneDrive could keep up with? I ran the following command:

dummydir add -c 500 --filesize=1k-10k test

Which created a directory with 500 files in it. Once both machines had the opportunity to fully synchronize it (only taking a couple of minutes to accomplish), I executed this batch script:

@echo off
:loop
dummydir modify --modifytype=overwrite -c 500 test
timeout /t 60
goto loop

In essence, all 500 files are modified every minute (though random, typically around 1.5 MB of data is changed each time). Since previous tests indicated that OneDrive can only send the complete files (not just the changes), this means that all 500 files will need to be transmitted every minute, something that OneDrive has so far shown an inability to do.

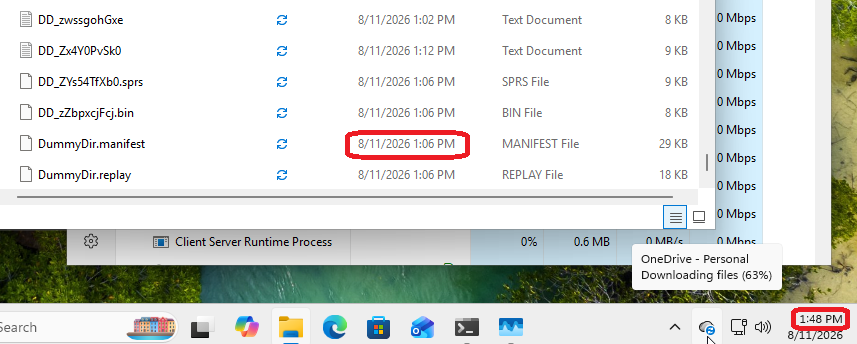

After about 90 minutes of continuous churn, we can see that the second machine is having real difficulty keeping up with the most current version:

This situation is fairly unique to OneDrive. Most synchronization software simply makes a best effort to copy the data over but since OneDrive slavishly insists on copying every change over, in order, it can fall pretty far behind.

I let my process run for 8 hours and then turned it off. I can report that OneDrive did not completely replay every missed step but actually synchronized itself within 4 minutes.

Next I stepped things up a little. Same process as before but I increased the directory size to 2000 files (11 MB total). OneDrive struggled more this time and I finally witnessed evidence of its struggle:

Even though I ran this process for only 2 hours, it took about 12 minutes to get both systems synchronized after it ended.

These two churn tests replicate a behavior one might see in the real world; it is easy to imagine an application that is continually altering a large number of files and OneDrive struggles to keep up with. It is less reasonable to imagine an application that is constantly adding and deleting files… and that is exactly what I’m going to try next:

dummydir dadd -c 100 test
dummydir add -c 5000 --filesize=1k-10k

That sets up us nicely with a base directory that contains 100 subdirectories and 5000 files. Then we institute a continuous job that deletes 3000 files and adds 3000 files every minute:

@echo off
:loop
dummydir delete -c 3000 test
dummydir add -c 3000 --filesize=1k-10k test
timeout /t 60
goto loop

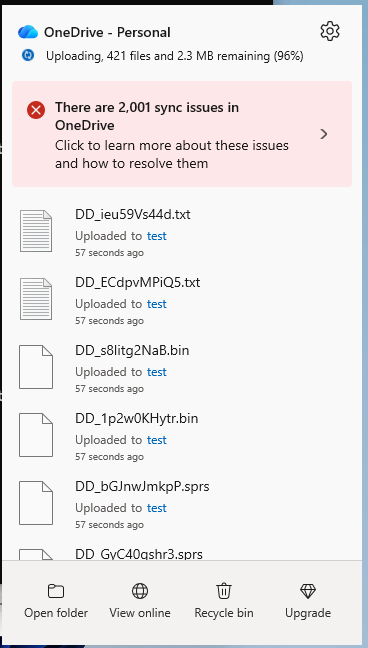

This process I ran for about 10 1/2 hours and during that time OneDrive was completely stuck – unable to pretty much sync anything. I stopped it and OneDrive remained stuck in a loop, processing files that were long since deleted, and unable to sync new files that I created. 8 hours and 7 minutes later the synchronization process finally completed and the 28 MB of files were on both computers.

Could this kind of problem occur in the real world? It absolutely could. Plenty of software write temporary files onto the file system and quickly delete them after. Based on this testing, it’s evident that running such software would block synchronization not just while it is running but also for potentially a long time afterward.

Conflictapolooza

My final question is, what happens if two programs unrelentingly and continuous modify the same directory of data? OneDrive acts gracefully if, say, a user accidentally edits a text file on two computers at the same time: it creates a copy of both versions. What does it look like though if we do something a tad more aggressive?

I created a simple directory of 20 files:

dummydir add --count=20 --filesize=1k-10m test

Then I created the following batch script that will modify 5 of the files at random every second or so:

@echo off
:loop
dummydir modify -c=5 --modifytype=overwrite test
timeout /t 1
goto loop

Then I set both machines loose, running the same batch script at the same time. I let it run for 5 minutes and then waited for the machines to finish synching. After about 90 minutes of failing to sync, I rebooted the problematic machine:

Once the reboot was complete both machines successfully synchronized. Interestingly Dummy Directory was able to successfully verify the files (I expected there to be conflicts here) but the total number of data files had increased from 20 to 37.

To clarify, this was not a fair test. It is unrealistic to expect any bidirectional syncing system to be able to keep data synchronized fast enough to satisfy an application. That said, this scenario did put OneDrive into a situation where it was unable to perform any processing until it was rebooted.

Conclusion

After performing these tests, I have developed the following points regarding OneDrive:

• Integrity – OneDrive showed a high degree of data integrity. I ran hundreds of thousands of files through its synchronization process and Dummy Directory did not detect a single problem. Though situations did arise where OneDrive was not able to synchronize in a timely manner, it was always able to eventually.
• Speed – OneDrive can synchronize data quickly but does not always do so. Users should be aware that they may have to wait minutes or hours for their data to be synchronized.
• Efficiency – OneDrive can be extremely inefficient. In particular, any situation in which files are created and then deleted will cause OneDrive to eat up an enormous amount of processing time.

In conclusion, OneDrive is a fair option for lightweight users with a small number of files. It does keep the files synchronized across multiple machines as well as the OneDrive web service and many users will find utility in this. It may not be appropriate for professional users who rely on desktop software to modify a large number of files.

Notes and Observations

Watching OneDrive work, it appears that it synchronizes by essentially replaying the file operations. For example, if a file is added, modified, and then deleted, each one of these operations is replayed on the destination machine even though no synchronization is necessary (the file isn’t there anymore). This leads to a lot of unnecessary processing and churn.

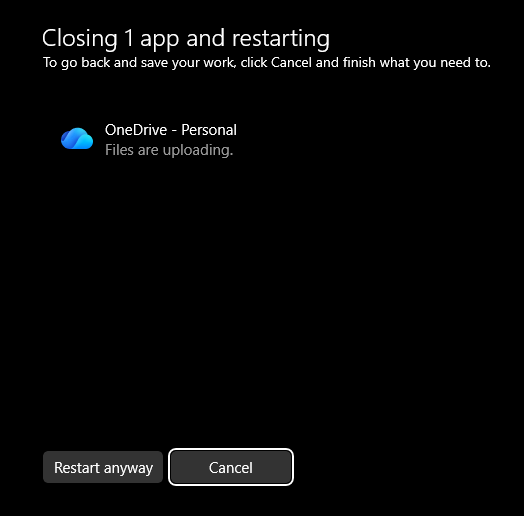

In the above tests, I sometimes rebooted the machines when I noticed a unrelated process was using an inordinate amount of processing power. I tried to get the times as low as possible as my goal was to measure OneDrive alone.

NAT is a reality in the modern Internet and it is something we all have to deal with. Ideally it works perfectly and you never need to think about it. This page will help you in those other times.

What Network Address Translation (NAT) Does

When the Internet was conceived of in the 1970’s, the idea was to give every computer on it its own address – called an IP address. In the 1990’s the Internet exploded in popularity and it turned out there was a shortage of IP addresses. Since then the number of Internet enabled devices have grown dramatically, making the problem even worse. The solution is to give each location its own IP address and then to rely on the local router to use Network Address Translation to share this address among all of the local devices.

Why Network Address Translation Doesn’t Always Work

Most devices and people use the Internet in an “outgoing” capacity; the intention is to connect to a service such as Netflix or Zoom. In these situations pretty much all NAT works fine.

Complications arise when the user or device wants to handle “incoming” traffic. This can happen especially when using a peer-to-peer service such as a videogame or a VOIP telephone. In this situation two devices are trying to talk to each other directly and NAT is blocking the attempt.

The Gradients of NAT

There are many different types of NAT and generally each one reflects a trade-off between accessibility and security. The earliest NAT devices were very easy to work around but they also made it too easy for malicious 3rd parties to attack users and devices. Over time routers have improved their security but in doing so it has become more difficult for peer-to-peer applications to function.

If you think that you’re experiencing issues with your local NAT, the first step is to determine what kind of NAT it is. There are a few options here:

• See if your device/app has an option to detect the local NAT type. Nearly all modern videogame systems have this feature.
• Use an online service to quickly determine your NAT type. www.checkmynat.com and natchecker.com can give you this information almost instantly.

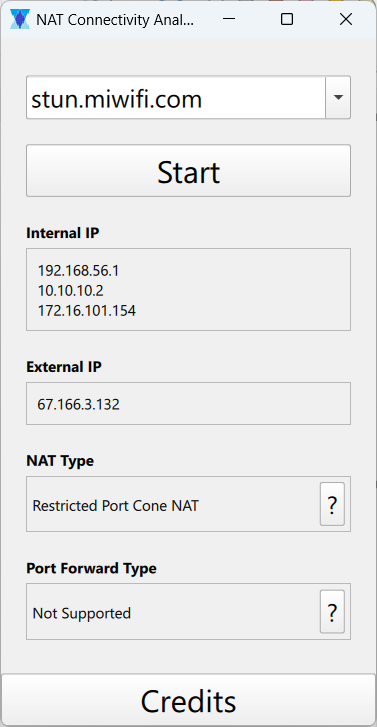

• Run NAT Connectivity Analyzer on your local computer.

The different types of NAT can generally be placed in the following buckets:

• Full Cone NAT: Communication is very easy with this NAT type – too easy. Most applications will work without difficulty but the users behind the NAT are unknowingly vulnerable to a variety of attacks. Most modern routers are moving away from this kind of NAT.
• Restricted Cone and Port Restricted Cone: These kind of NATs only allow outgoing connections. The problem is, what if both users sit behind these NATs, how do they both “place the call”? In order to support these types of NAT, the application must use a matchmaking service so that both sides create outgoing connections at the same time. It’s kludgy but after a few attempts it’s completely possible to create a connection.
• Symmetric: This NAT type makes peer-to-peer connectivity impossible. It is mainly used in business settings where it is important to keep tight control over how computers connect to each other. If you have a symmetric NAT, your best option is to enable automatic port forwarding (see below).

Another Option: Automatic Port Forwarding

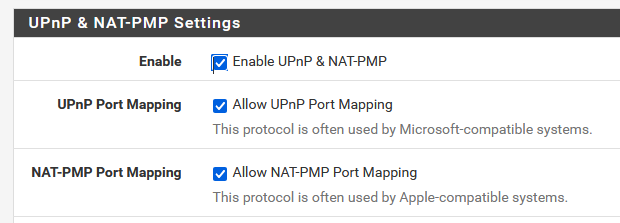

Some routers have an option to forward incoming traffic automatically. This is usually named Automatic Port Forwarding but might instead be called UPnP, NAT-PMP, or PCP.

If you’re having trouble with your NAT, you can turn these features on and see if it solves your problem. Try running NAT Connectivity Analyzer, as it can not only detect if your router has these features enabled but it will test them and make sure they are working correctly. It will also tell you whether your router’s port forwarding is one way or two way, which may matter to the program that you’re running.

One word of caution: many computer security experts recommend keeping this feature turned off. UPnP in particular gained a bad reputation many years ago due to some poorly designed routers but modern routers do not have the same problems. The best advice here is to not enable it needlessly, but there is little harm in keeping it on if you need it.

A Common Complication: Double NAT

A double NAT occurs when one router with NAT is plugged into a second router with NAT. This generally happens in two scenarios:

• Your Internet Service Provider doesn’t have enough IP addresses and is using carrier-grade NAT (CGNAT) to share them among users.
• Your local network has too many routers.

There is not much you can do about the former scenario (other than switch to a different Internet Service Provider) but it is worth exploring the second scenario.

The easiest way to detect a double NAT is to turn on automatic port forwarding and then run NAT Connectivity Analyzer. It will try to open a port and if it detects a second NAT then it will let you know.

Double NATs are usually a minor nuisance and many users live with them just fine but if you’re having networking issues then it may be worth resolving. There are two approaches to getting rid of a double NAT:

• Move as many devices as possible from the inner NAT (usually a wireless router) to the outer NAT (usually a modem).
• Switch the outer NAT (usually a modem) into bridging mode and configure your inner NAT router to connect to the ISP directly. This is a good solution if you’ve purchased a router with significant features that the other router doesn’t have (such as VPN).

Conclusion

The Internet was originally designed so that any computer could talk directly to any other computer. The modern Internet has discarded this design somewhat, moving in favor of client devices that connect directly with large corporate services. Most routers today are built with this in mind and prioritize securing the local network against attackers over enabling peer-to-peer communication.

Peer-to-peer is still possible however and many exciting apps, games, and devices use this methodology. It is worth getting to the bottom of your local router’s NAT in order to unlock these abilities.
